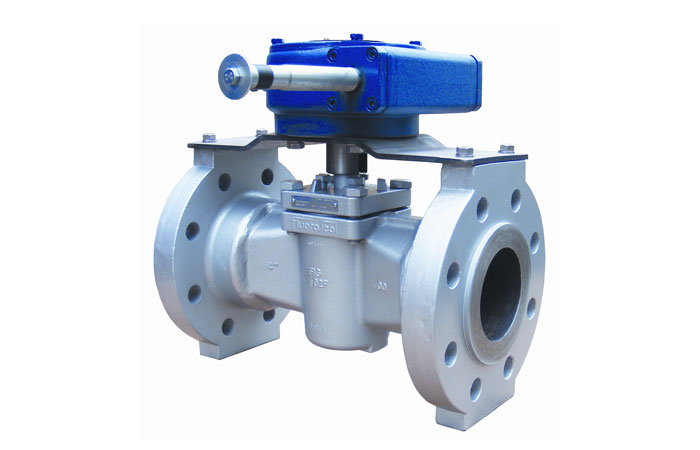

Fluoroseal Sleeved Plug Valve
Fluoroseal Sleeved Plug Valve
Products in this category...

Enquiries

The Fluoroseal plug valve range is available in full or reduced bore and provided as a Firesafe or none Firesafe specification to suit our customer’s process applications. The valve can offer bi-directional bubble tight sealing independent of line pressure and has no body cavities to entrap flow media. The standard valve design can be supplied in 2 or 3 port configuration.

Pressure Rating PN16, PN40, 150, 300 & 600
End Connections Screwed, Butt weld, Socket Weld, Flanged PN16, PN40, ASA150, ASA300 & ASA600
Size Range ½” to 24”
Plug Materials GGG40 (ductile iron), ASTM A216 WCB & WCC carbon steel, A351 CF8, CF3, CF8M, CF3M, CG8M, CG3M stainless steels as well as various Hastelloy grades, Inconel, Monel, Titanium and Zirconium.
Sleeve Materials PFA, GF2P, RTFE, PTFE, UHMWPE & Hi-Temp TEFLON
Body Materials GGG40 (ductile iron), ASTM A216 WCB & WCC carbon steel, A351 CF8, CF3, CF8M, CF3M, CG8M, CG3M stainless steels as well as various Hastelloy grades, Inconel, Monel, Titanium and Zirconium.

The Fluoroseal range of none lubricated plug valves will handle the most arduous of process application from aggressive acids to high temperature sulphur transfer lines. Plug valves have traditionally been used for services such as slurries or viscous media’s which would normally restrict the performance of valves such as ball or butterfly.

The Fluoroseal can be supplied for manual, automated or control type applications with the body style and material selected to suit our customer’s particular process application.

Available as an option for all the plug valve range is the EZ-SEAL top seal adjustment system which eliminates the potential of plug side loading during operation.
